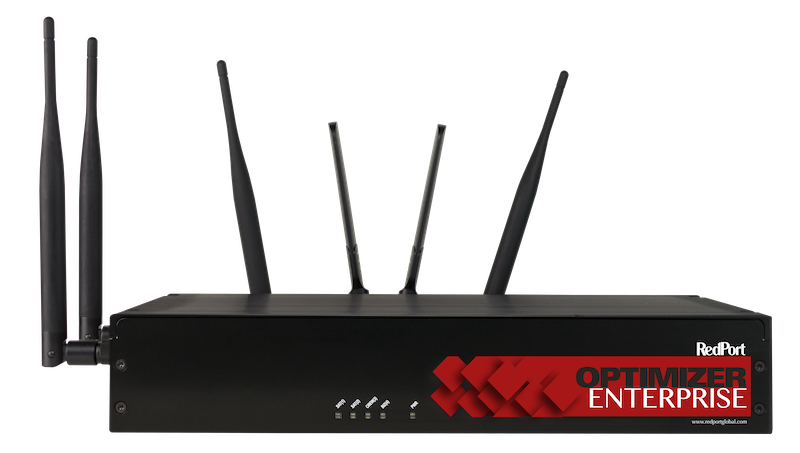

The RedPort Optimizer Enterprise

Optimizer Enterprise satellite data routers are enterprise-grade appliances for an all-in-one solution for even the most complex vessel networks, or as the central hub for crew welfare, business operations and VoIP services. Provide crew access, increase operational efficiency, optimize data and manage your network.

Optimizer Enterprise gives you access to the following capabilities:

  • Firewall/Router
  • Network Security
  • RedPort Email
  • Web Compression
  • Shared Web Caching
  • Onboard Captive Portal (PIN-code service)
  • Shoreside Captive Portal
  • Logging
  • Multi-WAN for Failover and Load-Balancing
  • Out of Band Management
  • GPS Vessel Tracking
  • IP-based compatibility with Satellite, GSM, Long-range WiFi and more
  • CrewCommCenter from SMSGlobal

wXa-363 Rackmounted


Features and Services



Routing and Logging

Satellite Router

Create and manage even the most complex networks with enterprise-grade features. Experienced networking professionals will find every necessary feature to configure networks as desired.

Firewall & Filtering

Satellite Firewall

Allows you to tightly manage traffic over the satellite link to block unwanted airtime usage. Allows port forwarding, domain-name filtering, network address translation, and detailed whitelisting and blacklisting of websites and services.

Remote Access

Satellite Remote Access

Remotely log-in and manage your local network from any Internet connection.

Web Compression $

Satellite Web-Compression

Transparent proxy service can automatically reduce http data consumption by a factor of 3-5 times, saving on valuable airtime, and accelerating limited satellite data speeds.

Captive Portal $

Satellite Captive Portal

Manage and control crew, passenger and operational data access by user or PIN code across fleets with our server-based captive portal.

Satellite Email $

Satellite Email

RedPort routers include a full POP/SMTP RedPort Mail server. Users can access email via a local web page or by simply entering settings into their preferred email client (such as Outlook or Apple Mail) with up to 20 times acceleration, making RedPort XGate mail the premier choice for satellite email service.

GPS Tracking $

Satellite GPS Tracking

Reliably track vehicles or vessels anywhere in the world. Tracking your assets is now as simple as clicking your mouse and viewing them online. RedPort Tracking offers online maps that display exact location and offer advanced features like geo-fencing.

CrewCommCenter $smsg_logo



Controlled Crew access to Ship Announcements, Chat, SMS, Social Networking News, e-Learning and more.

$ = Premium Service. Monthly Fees May Apply.


Who Is It Good For?

Optimizer Enterprise can manage high-demand networks for operational efficiency and crew and passenger access in a marine environment. A networking professional, either on staff, or engaged via RedPort, is recommended for proper configuration.

  • Cargo/Transport Vessels
  • Offshore Oil Rigs
  • Cruise Ships
  • Basecamps



optimizer-enterprise-industries


Optimizer Enterprise for VoIP

Optimizer Enteprise PBX functions can run an unlimited number of VoIP extensions via any analog, Ethernet, Wi-Fi or smartphone, convert from VoIP to circuit-switch, and offer a managed pre-paid platform, all with some of the best compression rates on the planet: 10 minutes of talk time per MB. Optimizer Enterprise allows for 4 simultaneous outgoing calls over most satellite broadband terminals. PIN-codes can be created for crew, passengers, work teams, and guests for both data or voice calls.


The Value Proposition

Optimizer Enterprise routers and VoIP gateways replace or integrate with other enterprise-grade routers that cost many times more. Because they are built from scratch for marine satellite installations, they are more durable and provide more services than standard routers. Properly configured Premium services will save customers thousands of dollars by preventing runaway airtime and the resulting bill shock, and provide valuable services for use or resale to passengers and crew.


RedPort Routers

The Right Router for Every Installation

Services RedPort OptimizerOptimizer

Data Router

optimizer_voice_smOptimizer Voice

Data Router

Optimizer Premier satellite VoIP Gateway and Data Router for operations and crew access
Optimizer Premier

Data Router

RedPort wXa-300 Series
Optimizer Enterprise

Data Router

Firewall
VoIP Gateway -
RedPort Crew Satellite Email - Optional Optional Optional
Captive Portal for Crew Internet Access

(Shoreside Control of Crew Internet Access)

- -
Shared Web Compression - Optional Optional Optional
GPS Tracking Optional Optional Optional Optional
NMEA Repeater -
Web Filtering - Limited Limited
Quality of Service - - -
Failover/Load-Balancing - -
Least-Cost Routing - -
Multi-Level Administration -
OBM Out of Band Management Limited -
Caching - - -
Usage Logging/Web-reporting - Limited Limited
Bandwidth Logging Limited Limited Limited
Specifications
Ethernet LAN Ports 1 1 2 1
Ethernet WAN Ports 1 1 4 3
RJ-11 Analog Ports 0 1 1 0, 1, 4 or 8
WiFi Enabled
Max WiFi Range 30m 46m 46m 46m
WiFi 802.11 a/b/g 802.11 b/g/n 802.11 b/g/n 802.11 a/g
Storage - 8Gb SLC SSD AVai 8Gb SLC SSD Available 8Gb SLC SSD
Power Operating Range 9-18V DC 1A 9-18V DC 1A 9-18V DC 2A 9-18V DC 2A
Certifications FCC, CE, RoHS FCC, CE, RoHS FCC, CE, RoHS FCC, CE, RoHS
Compact Dimensions 3.8″ x 2.75″ x 1.0″ (97 x 70 x 25 mm) 3.5″ x 1.8″ x 4.4″ (90 x 47 x 110 mm) 6.3″ x 3.1″ x 2.1″ (160 x 80 x 54 mm) 6.6 x 1.2 x 6.2″ (168 x 30 x 157mm) (313)
10.9 x 2 x 5″ (277 x 50 x 126mm) (323)
Rackmounted Dimensions - - - 19″ 1U Rackmount
Enclosure
Compact Weight 0.22 lbs (0.10 kg) 0.56 lbs (0.25 kg) 1.12 lbs (0.5 kg) 1.86 lbs (0.845 kg) (313)
3.85 lbs (1.75 kb) (323)
Rackmounted Weight - - - 10.25 lbs (4.65 kg)
More Info Learn More about Optimizer Learn More about Optimizer Voice Learn More about Optimizer Premier Learn More about Optimizer Enterprise

Compatible With:

Iridium, Inmarsat, Thuraya, VSAT


Available Models

optim-enterprise-button

All versions feature quad-core processors with available 16GB RAM, 4 Ethernet ports, 1 USB port and Wi-Fi connectivity.

Desktop units feature 0, 1 or 4 analog RJ-11 ports.
Rackmount units feature 0, 4 or 8 analog RJ-11 ports.

Models:

  • wXa-524-D0            Enterprise – Desktop Quad Core; 0 analog ports
  • wXa-524-D1            Enterprise – Desktop Quad Core; 1 analog ports
  • wXa-524-D4            Enterprise – Desktop Quad Core; 4 analog ports
  • wXa-524-R0            Enterprise – Rackmount Quad Core; 0 analog port
  • wXa-524-R4            Enterprise – Rackmount QuadCore; 4 analog ports
  • wXa-524-R8            Enterprise – Rackmount Quad Core; 8 analog ports
