RedPort Optimizer Premier
Satellite Data, VoIP, Wi-FI, and GSM With Failover

Optimizer Premier: Satellite VoIP, Data, and Failover
Optimizer Premier is a VoIP gateway and data router that provides an all-in-one solution for vessels looking to get the most out of all available data connections.

Optimizer Premier automatically selects among available data connections, including long-range cellular, Wi-Fi, and all satellite broadband services including VSAT, Inmarsat FleetBroadband and Iridium OpenPort. Optimizer Premier also lets users optimize data usage with onboard email and web compression services, and manage access for passengers and crew with an included captive portal.




Optimizer Premier Features

Optimizer Premier features include:

  • Automatically selects among available data connections to choose the lowest-cost or preferred available data service
  • Captive Portal to control passenger and crew access via username or PIN codes
  • Router/Wi-Fi hotspot: Broadcasts the data connection via Ethernet or Wi-Fi for use with Wi-Fi enabled smartphones, tablets and computers.
  • Firewall: A powerful firewall accommodates virtually any common installation scenario, with features including block or allow any range of port, IP addresses and protocols.
  • GPS Tracking: Works with any GSATrack-based service (including RedPort Tracking), the world’s most widely used satellite GPS tracking service.
  • NMEA GPS Repeater: Locally broadcast your GPS location via Wi-Fi for access by any NMEA compliant device
  • Long-range Wi-Fi compatibility, with the optional RedPort Halo Wi-Fi system, or other compatible third-party Wi-Fi systems

Optimizer Premier Networking Diagram


Optimizer Premier For Data

Optimizer Premier provides unlimited firewall, filtering, routing, PIN-code creation, and local GPS repeating. It works with RedPort Mail service for premium access to accelerated email and web compression, as well as GPS tracking via RedPort Tracking or any GsatTrack-based service.
Because Optimizer Premier also re-broadcasts available compatible GSM and long-range Wi-Fi signals, its powerful data controls (including PIN-codes!) can be used with networks other than the primary satellite connections.

Satellite Web-Compression


Optimizer Premier for VoIP

The voice capabilities of Optimizer Premier allow for unlimited multi-VoIP (unlimited extensions), conversion from VoIP to circuit-switch, and some of the best compression rates on the planet: 15 minutes of talk time per MB. Because of the PIN-code capabilities of the router, PIN-codes can be created for crew, passengers, work teams, and guests for both data or voice calls.
Unlike traditional satellite airtime plans where only one outgoing call can be made at a time, Optimizer Premier allows for 4 simultaneous outgoing calls over most satellite broadband terminals.

Satellite VoIP Services


Optimizer Premier's Raison d'Etre: Automatic Failover

With automatic failover configured, Optimizer Premier will automatically switch between available networks to give you the fastest, cheapest connectivity available to you at that time. Users can be connected to long-range Wi-Fi (say at a marina), pull away from shore and failover to GSM, and then finally failover to satellite once completely out of the reach of terrestrial networks.
Optimizer Premier has ports for up to 2 satellite connections, in addition to GSM and long-range Wi-Fi, so failover can be configured to balance between two different satellite connections.
Best of all? You can configure load-balancing and least-cost routing between the failover options, so you can always be assured to keep your data usage in check and under control.

Automatic Failover


Features and Services



Automatic Failover

Automatic Failover

With automatic failover configured, Optimizer Premier will automatically switch between available networks to give you the fastest, cheapest connectivity available to you at that time. Optimizer Premier also offers full-featured load-balancing and least-cost routing to keep your airtime costs under your control.

VoIP to Circuit Switch

VoIP to Circuit Switch Conversion

The Optimizer Premier includes VoIP to circuit-switch conversion, which means that you can pick up your cellphone and - using the free XGate Phone app - make and receive traditional satellite phone calls with your smartphone, instead of plugging into the satellite terminal itself.

VoIP Service $

RedPort VoIP Service

Using RedPort VoIP service means that you can make VoIP calls over your satellite terminal using some of the most advanced and sophisticated compression rates on the planet. At 15 minutes of talk time per MB of data use and very low termination rates, RedPort VoIP service provides significant discounts over traditional satellite airtime as well as the ability to create and use prepaid VoIP calling cards for crew, work teams, or guests.

Routing and Logging

Satellite Router

Create and manage even the most complex networks with enterprise-grade features. Experienced networking professionals will find every necessary feature to configure networks as desired.

Firewall & Filtering

Satellite Firewall

Allows you to tightly manage traffic over the satellite link to block unwanted airtime usage. Allows port forwarding, domain-name filtering, network address translation, and detailed whitelisting and blacklisting of websites and services.

Remote Access

Satellite Remote Access

Remotely log-in and manage your local network from any Internet connection.

Web Compression $

Satellite Web-Compression

Transparent proxy service can automatically reduce https data consumption by a factor of 3-5 times, saving on valuable airtime, and accelerating limited satellite data speeds.

Captive Portal

Satellite Captive Portal

Manage and control crew, passenger and operational data access by user or PIN code across fleets with Optimizer Premier's integrated captive portal.

Satellite Email $

Satellite Email

RedPort routers include a full POP/SMTP RedPort Mail server. Users can access email via a local web page or by simply entering settings into their preferred email client (such as Outlook or Apple Mail) with up to 20 times acceleration, making RedPort XGate mail the premier choice for satellite email service.

GPS Tracking $

Satellite GPS Tracking

Reliably track vehicles or vessels anywhere in the world. Tracking your assets is now as simple as clicking your mouse and viewing them online. RedPort Tracking offers online maps that display exact location and offer advanced features like geo-fencing.

$ = Premium Service. Monthly Fees May Apply.


Who Can Use Optimizer Premier?

Optimizer Premier is good for anyone who needs to manage a satellite Internet installation for multiple users. Optimizer Premier is loaded with features and services for all but the most complex installations, including:

  • Captive portal for Multi-User Internet Access
  • PIN-code create for voice and data use
  • Unlimited VoIP Extensions
  • Shared Web Compression
  • RedPort Email for compression email
  • GPS Tracking*
  • NMEA GPS Repeating
  • Powerful routing and firewall options

*When used with a GPS-enabled broadband satellite terminal.
Some services may require a subscription.
Users in a wide range of industries and applications have found Optimizer Premier to be the perfect tool for their satellite broadband Internet connection:

  • Cargo/Transport Vessels
  • Offshore Oil Rigs
  • Commercial Fishing
  • Basecamps
  • Individual users

RedPort Satellite Data Router Applications


The Value Proposition

Optimizer Premier gives the people who live, work and play on ships access to Wi-Fi and cellular data where it’s available and their satellite broadband service everywhere else. Plus, it has the services needed to get the most out of every kilobyte, whether it be for email, web browsing, social media, weather or GPS Tracking.
Optimizer Premier gives vessel owners and remote land-based work crews flexible control over crew and passenger satellite airtime usage, and provides easy controls for managing satellite Internet and voice.
Free services with Optimizer Premier incude automatic failover, least-cost routing, filtering, firewall, captive portal for multi-user Internet and voice access, and NMEA GPS repeating. Properly configured Premium services like RedPort VoIP, system-wide compression, and RedPort Email will save customers thousands of dollars by preventing runaway airtime and the resulting bill shock.


RedPort Routers

The Right Router for Every Installation

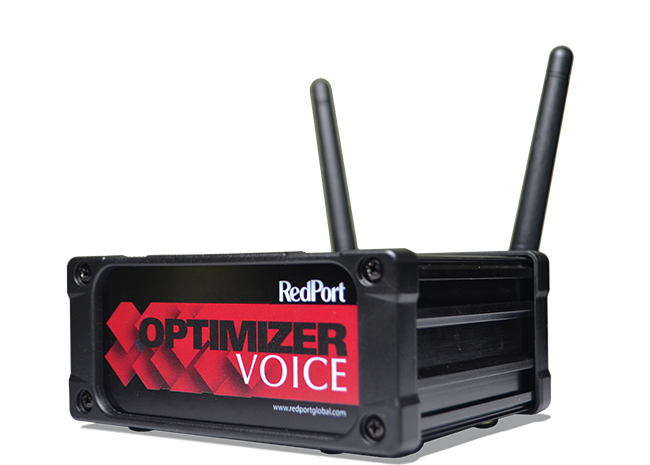

RedPort Optimizer Voice
Powerful, Affordable, VoIP and Data Satellite Airtime Control





The Optimizer Voice will cease to be sold as of December 18, 2020. We recommend considering the Optimizer Personal or Optimizer Premier as an alternative. We will continue to support existing hardware until December 18, 2022 and RedPort services on the Optimizer Voice through December 18, 2023

Optimizer Voice combines a powerful satellite data router with voice capabilities, including a full PBX, a prepaid VoIP service with PIN codes, and the ability to carry up to four simultaneous calls over most satellite broadband terminals.

More than just a voice device, RedPort Optimizer Voice gives you everything you need to create a local voice and data network with your satellite device.

Manage your usage, protect against accidental airtime usage, accelerate your data speeds, enable email and web compression, track your location via GPS, and provide routing, filtering and security. (Some fees may apply).




Optimizer Voice as Data Router

Optimizer Voice provides unlimited firewall, filtering, routing, and local GPS repeating. It works with RedPort Mail service for premium access to accelerated email and web compression, as well as GPS tracking via RedPort Tracking or any GsatTrack-based service.


Optimizer Voice for VoIP

The voice capabilities of Optimizer Voice allow for unlimited multi-VoIP (unlimited extensions), conversion from VoIP to circuit-switch, and some of the best compression rates on the planet: 15 minutes of talk time per MB. Because of the PIN-code capabilities of the router, PIN-codes can be created for crew, passengers, work teams, and guests for both data or voice calls.
Unlike traditional satellite airtime plans where only one outgoing call can be made at a time, Optimizer Voice allows for 4 simultaneous outgoing calls over most satellite broadband terminals.


Features and Services



VoIP to Circuit Switch

VoIP to Circuit Switch Conversion

The Optimizer Voice includes VoIP to circuit-switch conversion, which means that you can pick up your cellphone and - using the free XGate Phone app - make and receive traditional satellite phone calls with your smartphone, instead of plugging into the satellite terminal itself.

VoIP Service $

RedPort VoIP Service

Using RedPort VoIP service means that you can make VoIP calls over your satellite terminal using some of the most advanced and sophisticated compression rates on the planet. At 15 minutes of talk time per MB of data use and very low termination rates, RedPort VoIP service provides significant discounts over traditional satellite airtime as well as the ability to create and use prepaid VoIP calling cards for crew, work teams, or guests.

Routing and Logging

Satellite Router

Create and manage even the most complex networks with enterprise-grade features. Experienced networking professionals will find every necessary feature to configure networks as desired.

Firewall & Filtering

Satellite Firewall

Allows you to tightly manage traffic over the satellite link to block unwanted airtime usage. Allows port forwarding, domain-name filtering, network address translation, and detailed whitelisting and blacklisting of websites and services.

Remote Access

Satellite Remote Access

Remotely log-in and manage your local network from any Internet connection.

Web Compression $

Satellite Web-Compression

Transparent proxy service can automatically reduce https data consumption by a factor of 3-5 times, saving on valuable airtime, and accelerating limited satellite data speeds.

Network Security

Satellite Captive Portal

Manage and control your local network for maximum security.

Satellite Email $

Satellite Email

RedPort routers include a full POP/SMTP RedPort Mail server. Users can access email via a local web page or by simply entering settings into their preferred email client (such as Outlook or Apple Mail) with up to 20 times acceleration, making RedPort XGate mail the premier choice for satellite email service.

GPS Tracking $

Satellite GPS Tracking

Reliably track vehicles or vessels anywhere in the world. Tracking your assets is now as simple as clicking your mouse and viewing them online. RedPort Tracking offers online maps that display exact location and offer advanced features like geo-fencing.

$ = Premium Service. Monthly Fees May Apply.


Case Study: Inmarsat IsatHub iSavi

httpss://www.youtube.com/watch?v=l32M38Xo4ZI&ab_channel=Inmarsat

When used with an Inmarsat IsatHub terminal like the iSavi, Optimizer Voice is the only way to provide powerful airtime control features, multi-VoIP, and filtering and blocking of unwanted URLs.
When connected to the iSavi, Optimizer Voice allows you to either place standard Inmarsat calls using your smartphone and XGate Phone app, or place up to four simultaneous  VoIP calls for multiple users with the RedPort VoIP service.
When used with RedPort VoIP service, allows for more than 25% reduction in voice airtime rates when compared with traditional IsatHub voice calls.


Optimizer Voice with iSavi IsatHub


Who Can Use Optimizer Voice?

Optimizer Voice is good for anyone who needs to manage a satellite Internet installation for multiple users. For installations that require PIN-codes for data service, or least-cost routing, see the Optimizer Premier.  Optimizer Voice is loaded with features and services for all but the most complex installations, including:

  • Included PBX to create an local phone network
  • Pre-paid and postpaid service voice  use
  • Unlimited VoIP Extensions
  • Shared Web Compression
  • RedPort Email for compression email
  • GPS Tracking*
  • NMEA GPS Repeating
  • Powerful routing and firewall options

*When used with a GPS-enabled broadband satellite terminal.
Some services may require a subscription.
Users in a wide range of industries and applications have found Optimizer Voice to be the perfect tool for their satellite broadband Internet connection:

  • Cargo/Transport Vessels
  • Offshore Oil Rigs
  • Commercial Fishing
  • Basecamps
  • Individual users

RedPort Satellite Data Router Applications


The Value Proposition

Optimizer Voice is the world’s most affordable satellite-optimized voice and data router. It gives vessel owners and remote land-based work crews flexible control over crew and passenger satellite airtime usage, and provides easy controls for managing satellite Internet and voice.
Free services with Optimizer Voice incude routing, filtering, firewall, and NMEA GPS repeating. Properly configured Premium services like RedPort VoIP, system-wide compression, and RedPort Email will save customers thousands of dollars by preventing runaway airtime and the resulting bill shock.
Looking for a Captive Portal? See our Optimizer Premier.


RedPort Routers

The Right Router for Every Installation

Services optimizer-unit-150x150-1

Optimizer

Wi-Fi Router &

Voice Gateway

optimizer_premier_sm-150x150-1

Optimizer Premier

Data Router



optimizer_enterprise-150x150-1

Optimizer Enterprise

Data Router



Firewall
VoIP Gateway
RedPort Crew Satellite Email - Optional Optional
Captive Portal for Crew Internet Access

(Shoreside Control of Crew Internet Access)

-
Shared Web Compression Optional Optional Optional
GPS Tracking Optional Optional Optional
NMEA Repeater -
Web Filtering - Limited
Quality of Service - -
Failover/Load-Balancing -
Least-Cost Routing -
Multi-Level Administration -
OBM Out of Band Management Limited
Caching - -
Usage Logging/Web-reporting - Limited
Bandwidth Logging Limited Limited
Specifications
Ethernet LAN Ports 1 2 1
Ethernet WAN Ports 1 4 3
RJ-11 Analog Ports 0 1 0, 1, 4 or 8
WiFi Enabled
Max WiFi Range 30m 46m 46m
WiFi 802.11 a/b/g/n 802.11 b/g/n 802.11 a/g
Storage - 8Gb SLC SSD Available 8Gb SLC SSD
Power Operating Range 9-18V DC 4A 9-18V DC 2A 9-18V DC 2A
Certifications FCC, CE, RoHS FCC, CE, RoHS FCC, CE, RoHS
Compact Dimensions 4 9/16" x 3 3/18" x 1 1/16"
(116 x 86 x 25 mm)
6.3" x 3.1" x 2.1"
(160 x 80 x 54 mm)
6.6 x 1.2 x 6.2"
(168 x 30 x 157mm) (313)
10.9 x 2 x 5"
(277 x 50 x 126mm) (323)
Rackmounted Dimensions - - 19" 1U Rackmount
Enclosure
Compact Weight 0.4 lbs (0.18 kg) 1.12 lbs (0.5 kg) 1.86 lbs (0.845 kg) (313)
3.85 lbs (1.75 kb) (323)
Rackmounted Weight - - 10.25 lbs (4.65 kg)
More Info Learn More about
Optimizer
Learn More about
Optimizer Premier
Learn More about
Optimizer Enterprise

Compatible With

Inmarsat, Thuraya, and VSAT


Buy wXa-300 Series Satellite Data Router
Become a RedPort Dealer

Compatible With

Iridium Email/Internet Satellite Phone Service Inmarsat Email/Internet Satellite Phone Service Globalstar Email/Internet Satellite Phone Service Thuraya Email/Internet Satellite Phone Service VSAT Email/Internet Satellite Phone Service MSAT Email/Internet Satellite Phone Service
