RedPort Optimizer
Wi-Fi Router and Voice Gateway



The RedPort Optimizer is a satellite Wi-Fi router and voice gateway that lets you get the most out of your satellite data service, with the devices you already have. Optimizer broadcasts your satellite data feed via Wi-Fi for easy connectivity. Its powerful firewall blocks unwanted services to eliminate runaway satellite phone airtime bills. With compatible satellite broadband terminals, Optimizer’s built in PBX lets you make and receive voice calls with all your devices. Best of all, Optimizer is designed to work with XGate and XGate-based services, so you can easily access email, web, weather, and track your location.







Optimizer Features

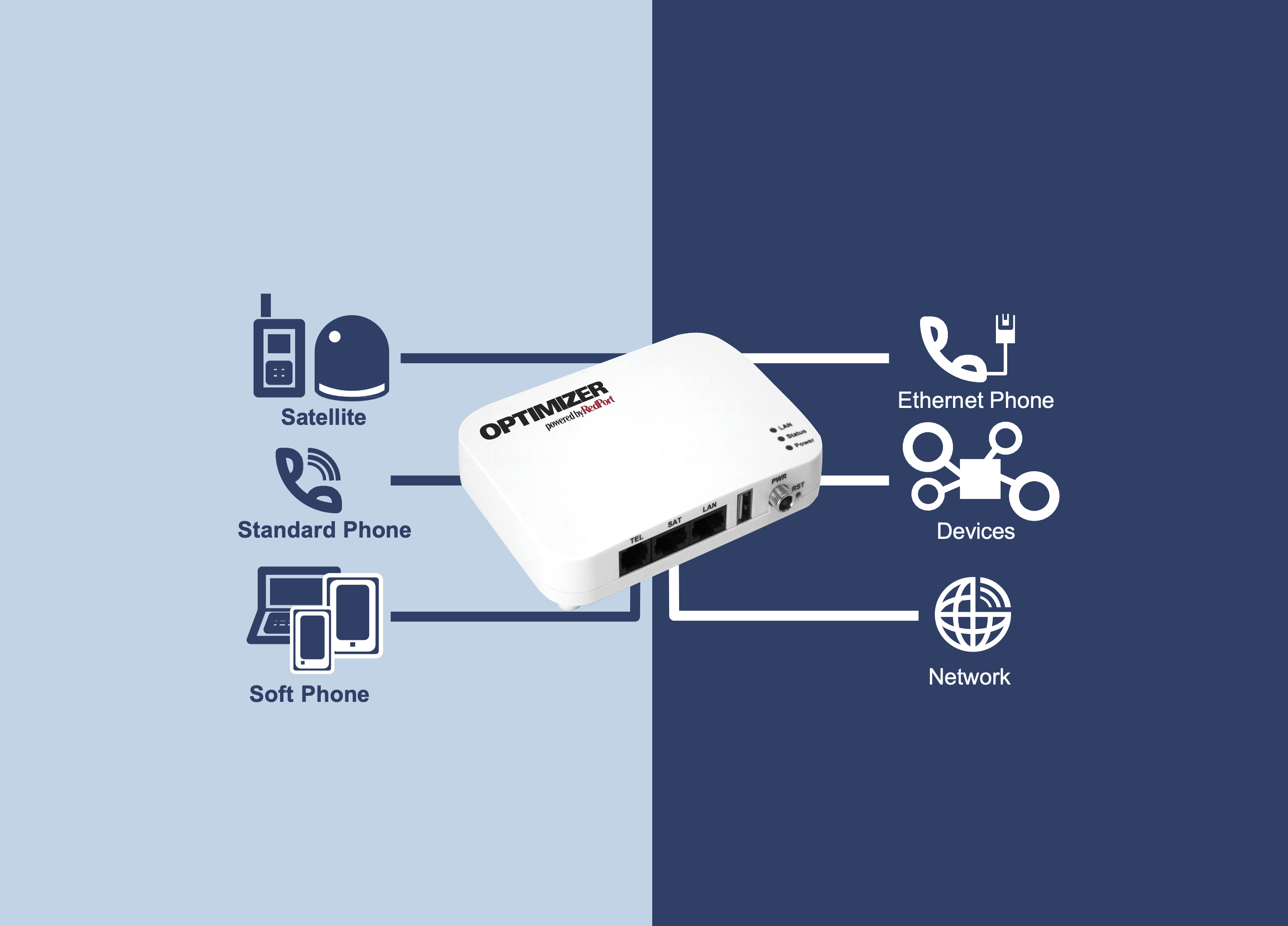

Optimizer Diagaram 2020
icons1.2

  • Satellite – Turns any IP-based satellite data signal into a Wi-Fi Hotspot
  • Firewall & Filtering – Manage traffic over the satellite link to block unwanted airtime usage. Allow port forwarding, domain-name filtering, network address translation, and detailed whitelisting and blacklisting of websites and services
  • Wi-Fi – Hotspot makes setup and use with compatible computers and tablets easy
  • New! Voice – When connected to an Iridium Certus or Inmarsat satellite terminal use your standard satellite voice service with your smartphone over our  included PBX
  • GSM support – Plug in a compatible GSM USB-modem when you have GSM access
    to keep all the speed and convenience benefits of Optimizer, wherever you are
  • Remote Access – Remotely log in and manage your local network from any Internet connection
  • Network Security – Manage and control your local network for maximum security






Premium Services with Optimizer

Optimizer works with the industry’s most popular premium services to connect you with the important people, information and services in your personal life and business.

Optimizer is designed to work with XGate and XGate-based services including Iridium Mail&Web to give you access to satellite email, weather services, blogging and more. Optimizer also enables services like GPS vessel tracking and premium VoIP services for satellite broadband users.

XGate Satellite Phone E-mail & Data Services



Optimizer requires a subscription to a RedPort-certified data service program like XGate satellite data service in order to establish a connection with a satellite phone or terminal.
icons1.1

  • Email – Accelerate email service up to 20 times, saving up to 85% on satellite airtime
  • Satellite Phone Weather Services – See local marine and atmospheric conditions or use PredictWind Lite (included with XGate) to get accurate weather forecasts
  • Social Media – Update Sailblogs or any platform that lets you post via email
  • Blogging Service – Get a free Sailblogs Premium Basic account with a compatible service.

RedPort Optimizer Airtime Savings for Satellite Email & Data Services

Using the RedPort Optimizer with Mac, Windows, or iOS devices accelerates satellite
phone data transfers: up to 15-20 times faster for email, and 3-5 times faster for
web browsing. Designed explicitly to make the most of the narrowband satellite phones and terminals (like handheld satellite phones), the RedPort Optimizer uses
XGate compression data service to automatically dial, start and end data calls,
and eliminate the unnecessary demands common with most computing devices,
giving you automatic and complete access to the data feed.

You can use XGate with any internet connection available to you:
satellite, land-based WiFi connections, GSM cellular networks,
and directly connected to any IP-based wireless service.






Sailblogs - Blogging Service

SailBlogs is the leading provider of blogging and map tracking solutions for the sailing community.
From weekend sailors to ocean racers and cruisers, SailBlogs provides members with
web-based journals (blogs), photo and video galleries and map tracking for their adventures.









New! RedPort VoIP Service



When connected to a VSAT or Inmarsat broadband satellite terminal RedPort VoIP service provides significant discounts over traditional satellite airtime as well as the ability to create and use prepaid VoIP calling cards for crew or work teams handset or with your smartphone using the XGate phone app. Call for details.

  • Low Monthly Access Fee
  • Choose a phone number from 30 different countries
  • Low Postpaid Termination Rates
  • Calling party simply dials your phone like any other in that country
  • Low Prepaid Codes for Ship Operations, or Crew and Passenger Sales






Redport Tracking

Tracking your position almost anywhere on the planet is as easy as plugging Optimizer into your compatible satellite phone or terminal and letting your travels take you where they will.
When used with a satellite phone or terminal that has an embedded GPS, Optimizer will relay a vessel’s position report to RedPort Tracking where you can see a history of its locations, set alerts, and embed an individual map on a webpage of your choosing.

The RedPort Tracking Web-Portal
The web-portal consists of a detailed, robust online tracking interface that provides:

  • Real-time Position and Tracking
  • Longitude and latitude info
  • Emergency alarm/ SOS/Movement alarm/ Overspeed alarm/ Border crossing alert
  • Geo-fence alarm
  • Course and Speed (on web-based tracking site)
  • Web-based tracking or mobile-phone-based tracking
  • Central Monitoring system (web-base)
  • History of tracking movements
  • Ability to track hundreds of vessels or assets on one web-based monitoring system

Embedding Your Unique Tracking Map on Your Site
With RedPort Tracking, you can choose to embed your unique tracking map (or that of your vessels)
on a site of your choosing. For individuals, this means that friends and family back home can
immediately see where you are located in the world and follow along on your journey.
For those needing commercial vessel tracking, this means that you can view all of your assets
at once on one single map, set zone alarms and alerts, and see vessel history in one flexible interface.




Optimizer Compatibility

Optimizer works with virtually all satellite providers and all popular computer operating systems. Some services are dependent on your system; not all services work with all devices.
* Some Equipment Requires Compatible Serial-USB cable (not included)

  • RedPort Voice: Iridium Certus; Inmarsat BGAN, Fleet One, FleetBroadband, Fleet Xpress, Global Xpress, Thuraya IP
  • RedPort VoIP: Inmarsat BGAN, FleetBroadband, Fleet Xpress, Global Xpress, Thuraya IP
  • RedPort Routing and Data Functions:

Inmarsat IsatPhone Pro; IsatPhone 2; BGAN; Fleet One; FleetBroadband; Fleet Xpress
Iridium Certus; 9555; 9575 Extreme; OpenPort; 9500*, 9505*, 9505a*
Globalstar GSP-1700; GSP-1600*, GSP-2900*, Sat-FI, Sat-FI 2
Thuraya USB and IP
VSAT and other systems.



Specifications

Physical Specifications
Size: 116 x 86 x 25 mm | 4 9/16” x 3 3/18” x 1 1/16”
Weight: 0.18 Kg | 0.4 lbs
Memory: RAM 128 MB | Flash 16 MB
Power: 12V 4A DC
Ports
Ethernet LAN: 1
Ethernet WAN: 1
RJ-11 Analog Port: 1
USB: 1
Wi-Fi
2.4 GHz, IEEE 802.11b/g/n
1-14 operating channels
Certifications
FCC, CE, RoHS, AU, NZ




Redport Routers

The Right Router for Every Installation

RedPort Optimizer Voice
Powerful, Affordable, VoIP and Data Satellite Airtime Control





The Optimizer Voice will cease to be sold as of December 18, 2020. We recommend considering the Optimizer Personal or Optimizer Premier as an alternative. We will continue to support existing hardware until December 18, 2022 and RedPort services on the Optimizer Voice through December 18, 2023

Optimizer Voice combines a powerful satellite data router with voice capabilities, including a full PBX, a prepaid VoIP service with PIN codes, and the ability to carry up to four simultaneous calls over most satellite broadband terminals.

More than just a voice device, RedPort Optimizer Voice gives you everything you need to create a local voice and data network with your satellite device.

Manage your usage, protect against accidental airtime usage, accelerate your data speeds, enable email and web compression, track your location via GPS, and provide routing, filtering and security. (Some fees may apply).




Optimizer Voice as Data Router

Optimizer Voice provides unlimited firewall, filtering, routing, and local GPS repeating. It works with RedPort Mail service for premium access to accelerated email and web compression, as well as GPS tracking via RedPort Tracking or any GsatTrack-based service.


Optimizer Voice for VoIP

The voice capabilities of Optimizer Voice allow for unlimited multi-VoIP (unlimited extensions), conversion from VoIP to circuit-switch, and some of the best compression rates on the planet: 15 minutes of talk time per MB. Because of the PIN-code capabilities of the router, PIN-codes can be created for crew, passengers, work teams, and guests for both data or voice calls.
Unlike traditional satellite airtime plans where only one outgoing call can be made at a time, Optimizer Voice allows for 4 simultaneous outgoing calls over most satellite broadband terminals.


Features and Services



VoIP to Circuit Switch

VoIP to Circuit Switch Conversion

The Optimizer Voice includes VoIP to circuit-switch conversion, which means that you can pick up your cellphone and - using the free XGate Phone app - make and receive traditional satellite phone calls with your smartphone, instead of plugging into the satellite terminal itself.

VoIP Service $

RedPort VoIP Service

Using RedPort VoIP service means that you can make VoIP calls over your satellite terminal using some of the most advanced and sophisticated compression rates on the planet. At 15 minutes of talk time per MB of data use and very low termination rates, RedPort VoIP service provides significant discounts over traditional satellite airtime as well as the ability to create and use prepaid VoIP calling cards for crew, work teams, or guests.

Routing and Logging

Satellite Router

Create and manage even the most complex networks with enterprise-grade features. Experienced networking professionals will find every necessary feature to configure networks as desired.

Firewall & Filtering

Satellite Firewall

Allows you to tightly manage traffic over the satellite link to block unwanted airtime usage. Allows port forwarding, domain-name filtering, network address translation, and detailed whitelisting and blacklisting of websites and services.

Remote Access

Satellite Remote Access

Remotely log-in and manage your local network from any Internet connection.

Web Compression $

Satellite Web-Compression

Transparent proxy service can automatically reduce https data consumption by a factor of 3-5 times, saving on valuable airtime, and accelerating limited satellite data speeds.

Network Security

Satellite Captive Portal

Manage and control your local network for maximum security.

Satellite Email $

Satellite Email

RedPort routers include a full POP/SMTP RedPort Mail server. Users can access email via a local web page or by simply entering settings into their preferred email client (such as Outlook or Apple Mail) with up to 20 times acceleration, making RedPort XGate mail the premier choice for satellite email service.

GPS Tracking $

Satellite GPS Tracking

Reliably track vehicles or vessels anywhere in the world. Tracking your assets is now as simple as clicking your mouse and viewing them online. RedPort Tracking offers online maps that display exact location and offer advanced features like geo-fencing.

$ = Premium Service. Monthly Fees May Apply.


Case Study: Inmarsat IsatHub iSavi

httpss://www.youtube.com/watch?v=l32M38Xo4ZI&ab_channel=Inmarsat

When used with an Inmarsat IsatHub terminal like the iSavi, Optimizer Voice is the only way to provide powerful airtime control features, multi-VoIP, and filtering and blocking of unwanted URLs.
When connected to the iSavi, Optimizer Voice allows you to either place standard Inmarsat calls using your smartphone and XGate Phone app, or place up to four simultaneous  VoIP calls for multiple users with the RedPort VoIP service.
When used with RedPort VoIP service, allows for more than 25% reduction in voice airtime rates when compared with traditional IsatHub voice calls.


Optimizer Voice with iSavi IsatHub


Who Can Use Optimizer Voice?

Optimizer Voice is good for anyone who needs to manage a satellite Internet installation for multiple users. For installations that require PIN-codes for data service, or least-cost routing, see the Optimizer Premier.  Optimizer Voice is loaded with features and services for all but the most complex installations, including:

  • Included PBX to create an local phone network
  • Pre-paid and postpaid service voice  use
  • Unlimited VoIP Extensions
  • Shared Web Compression
  • RedPort Email for compression email
  • GPS Tracking*
  • NMEA GPS Repeating
  • Powerful routing and firewall options

*When used with a GPS-enabled broadband satellite terminal.
Some services may require a subscription.
Users in a wide range of industries and applications have found Optimizer Voice to be the perfect tool for their satellite broadband Internet connection:

  • Cargo/Transport Vessels
  • Offshore Oil Rigs
  • Commercial Fishing
  • Basecamps
  • Individual users

RedPort Satellite Data Router Applications


The Value Proposition

Optimizer Voice is the world’s most affordable satellite-optimized voice and data router. It gives vessel owners and remote land-based work crews flexible control over crew and passenger satellite airtime usage, and provides easy controls for managing satellite Internet and voice.
Free services with Optimizer Voice incude routing, filtering, firewall, and NMEA GPS repeating. Properly configured Premium services like RedPort VoIP, system-wide compression, and RedPort Email will save customers thousands of dollars by preventing runaway airtime and the resulting bill shock.
Looking for a Captive Portal? See our Optimizer Premier.


RedPort Routers

The Right Router for Every Installation

Services optimizer-unit-150x150-1

Optimizer

Wi-Fi Router &

Voice Gateway

optimizer_premier_sm-150x150-1

Optimizer Premier

Data Router



optimizer_enterprise-150x150-1

Optimizer Enterprise

Data Router



Firewall
VoIP Gateway
RedPort Crew Satellite Email - Optional Optional
Captive Portal for Crew Internet Access

(Shoreside Control of Crew Internet Access)

-
Shared Web Compression Optional Optional Optional
GPS Tracking Optional Optional Optional
NMEA Repeater -
Web Filtering - Limited
Quality of Service - -
Failover/Load-Balancing -
Least-Cost Routing -
Multi-Level Administration -
OBM Out of Band Management Limited
Caching - -
Usage Logging/Web-reporting - Limited
Bandwidth Logging Limited Limited
Specifications
Ethernet LAN Ports 1 2 1
Ethernet WAN Ports 1 4 3
RJ-11 Analog Ports 0 1 0, 1, 4 or 8
WiFi Enabled
Max WiFi Range 30m 46m 46m
WiFi 802.11 a/b/g/n 802.11 b/g/n 802.11 a/g
Storage - 8Gb SLC SSD Available 8Gb SLC SSD
Power Operating Range 9-18V DC 4A 9-18V DC 2A 9-18V DC 2A
Certifications FCC, CE, RoHS FCC, CE, RoHS FCC, CE, RoHS
Compact Dimensions 4 9/16" x 3 3/18" x 1 1/16"
(116 x 86 x 25 mm)
6.3" x 3.1" x 2.1"
(160 x 80 x 54 mm)
6.6 x 1.2 x 6.2"
(168 x 30 x 157mm) (313)
10.9 x 2 x 5"
(277 x 50 x 126mm) (323)
Rackmounted Dimensions - - 19" 1U Rackmount
Enclosure
Compact Weight 0.4 lbs (0.18 kg) 1.12 lbs (0.5 kg) 1.86 lbs (0.845 kg) (313)
3.85 lbs (1.75 kb) (323)
Rackmounted Weight - - 10.25 lbs (4.65 kg)
More Info Learn More about
Optimizer
Learn More about
Optimizer Premier
Learn More about
Optimizer Enterprise

Compatible With

Inmarsat, Thuraya, and VSAT
