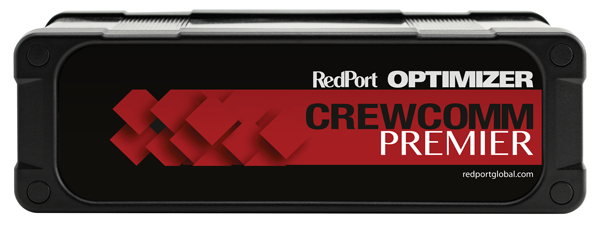

RedPort Optimizer CrewComm Premier

Dual Satellite, Dual LAN, VoIP & Data and Smart Hub

Optimizer-CrewComm-Premier

The Optimizer CrewComm Premier is a VoIP gateway and data router integrated with the SMSGlobal CrewCommCenter providing an all-in-one solution for users, vessels, and fleets looking to get the most out of all available data connections.



The Optimizer CrewComm Premier automatically selects among the best option available from optional long-range Wi-Fi, cellular, and satellite broadband services including VSAT, Inmarsat FleetBroadband, and Iridium Certus. TheCrewComm Premier lets users optimize data usage with onboard email and web compression services, as well as manage access for passengers and crew through an included captive portal. The new shoreside portal centralizes capabilities and functionality in one location. (Some fees may apply). The Optimizer CrewComm Premier and services are made possible by the RedPort Global and SMSGlobal partnership.






Satellite Compatibility

Iridium Satellite Broadband Network Management

Inmarsat Satellite Broadband Network Management

Thruaya Satellite Broadband Network Management

VSAT Satellite Broadband Network Management




vessel-tracking

Data Services

Shoreside portal for fleet management
Automatic Failover selects among available data connections for the lowest-cost or preferred data service.
Firewall – stops all unwanted data traffic
Compression with web content and URL-based filtering
Data PIN-codes – Generate PIN-codes onboard with the included captive portal, or use our shoreside service for fleet-based codes.
GPS Tracking – works with RedPort Tracking and many other tracking services.
NMEA GPS Repeater locally broadcasts your GPS location via Wi-Fi with other NMEA compliant devices.

phone-call

VoIP Services

Onboard PBX and SIP client – Set up a phone network with extensions and controls, or extend an existing PBX. Access voice via the built-in RJ-11 jack, Ethernet phones, SIP Wi-Fi phones or, via the XGate Phone app on iOS or Android.
Circuit-switch support lets you use devices such as Android and iOS smartphones and tablets to place a standard satellite call.
Optimized VoIP supports pre-paid or post-paid services while an advanced compression capability has VoIP calls averaging 10Kbps.

shore-portal-icon

Business Communications

XGate Email Services
Web Compression
Advanced Web Filtering
Cyber security – Virus detection, malware and spam removal.


Crew Communications

CrewCommCenter Crew Portal
Crew Email
Short Message Service with local gateways
Low-Data Chat for WhatsApp, Messenger, Viber, HiChat, Line, Kakao and more
News & Announcements
Se@MeNow social media




Key Features and Services



CrewCommCenter $

The Optimizer CrewComm allows easy fleet management using SMSGlobalCrewCommCenter.

Controlled Crew Access $

Controlled Crew access to Ship Announcements, Chat, SMS, Social Networking, News, e-Learning, and more.

Automatic Failover

With automatic failover configured, Optimizer CrewComm Premier will automatically switch between available networks to give you the fastest, cheapest connectivity available to you at that time. Optimizer CrewComm Premier also offers full-featured load-balancing and least-cost routing to keep your airtime costs under your control.

VoIP to Circuit Switch

The Optimizer CrewComm Premier includes VoIP to circuit-switch conversion, which means that you can pick up your cellphone and – using the free XGate Phone app – make and receive traditional satellite phone calls with your smartphone, instead of plugging into the satellite terminal itself.

VoIP Service $

Using RedPort VoIP service means that you can make VoIP calls over your satellite terminal using some of the most advanced and sophisticated compression rates on the planet. At 15 minutes of talk time per MB of data use and very low termination rates, RedPort VoIP service provides significant discounts over traditional satellite airtime as well as the ability to create and use prepaid VoIP calling cards for crew, work teams, or guests.

Routing and Logging

Create and manage even the most complex networks with enterprise-grade features. Experienced networking professionals will find every necessary feature to configure networks as desired.

Firewall & Filtering

Allows you to tightly manage traffic over the satellite link to block unwanted airtime usage. Allows port forwarding, domain-name filtering, network address translation, and detailed whitelisting and blacklisting of websites and services.

Remote Access

Remotely log-in and manage your local network from any Internet connection.

Web Compression $

Transparent proxy service can automatically reduce http data consumption by a factor of 3-5 times, saving on valuable airtime, and accelerating limited satellite data speeds.

Captive Portal

Manage and control crew, passenger and operational data access by user or PIN code across fleets with Optimizer Premier’s integrated captive portal.

Satellite Email $

RedPort routers include a full POP/SMTP RedPort Mail server. Users can access email via a local web page or by simply entering settings into their preferred email client (such as Outlook or Apple Mail) with up to 20 times acceleration, making RedPort XGate mail the premier choice for satellite email service.

GPS Tracking $

Reliably track vehicles or vessels anywhere in the world. Tracking your assets is now as simple as clicking your mouse and viewing them online. RedPort Tracking offers online maps that display exact location and offer advanced features like geo-fencing.

$ = Premium Service. Monthly Fees May Apply.




Main Specifications



Physical
Size 6.3″ x 3.1″ x 2.1″ (160 x 80 x 54 mm)
Weight 1.12 lbs (0.5 kg)
Ports
Ethernet LAN 2
Ethernet WAN 3
RJ-11 Analog 1
WiFi
WiFi 802.11 b/g/n
Storage
Storage Capacity Available 2Gb SLC SD
Electrical
Power Operating Range 12V DC 2A
Certifications
Regulatory FCC, CE, RoHS
Optional LTE Specifications
4G LTE Category Cat-6
4G LTE Frequency Bands B1, B2, B3, B4, B5, B7, B12, B13, B20, B25, B26, B29, B30, B41
3G WCDMA B1, B2, B3, B4, B5, B8
Peak Download Rate 300Mbps
Peak Upload Rate 50Mbps
Region Americas, EMEA, and Southeast Asia
Regulatory CE, FCC, GCF, IC, NCC, PTCRB
