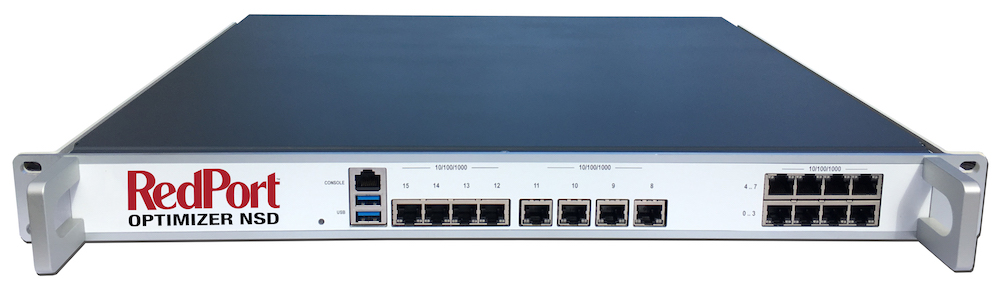

RedPort Optimizer NSD

RedPort-Optimizer-Enterprise-NSD



The RedPort Optimizer NSD is the world’s first device that combines the Inmarsat Fleet Xpress Network Service Device (NSD) with the RedPort Optimizer Enterprise satellite router and VoIP gateway. Equipping satellite service providers and ship operators an all-in-one solution that replaces complex installations with a single rackmount appliance to manage ship networks with satellite broadband routing, VoIP connectivity, and crew services.



The Optimizer NSD includes a software-based NSD to manage the Inmarsat Global Xpress Ka-band and Fleetbroadband L-band networks. Operating on a high-powered hardware platform, the networks are supported with the RedPort Enterprise suite of services for ship operations and crew welfare.






Features & Services



firewall-icon

Firewall & Web Filtering

Control features for every aspect of network management for maximum performance.

games-icon

Satellite Routing

Multi-WAN configuration for failover, OBM and least cost routing, with different rules based on the selected network.

shore-portal-icon

Fleet-based Shore-side Portal

Enables network managers to create and manage settings on a fleetwide basis from a single portal.

phone-call

VoIP

Multi-VoIP, Prepaid & postpaid, low-bandwidth, high-quality, high efficiency.

email-icon

Email

Powerful business email with onboard server and high efficiency.

cyber-security

Cyber Security

Powerful spam and malware detection and removal.

vessel-tracking

Vessel Tracking

Precise locations and operational awareness.

crew-welfare

Crew Welfare

Controlled Crew access to Ship Announcements, Chat, SMS, Social Networking News, e-Learning and more.

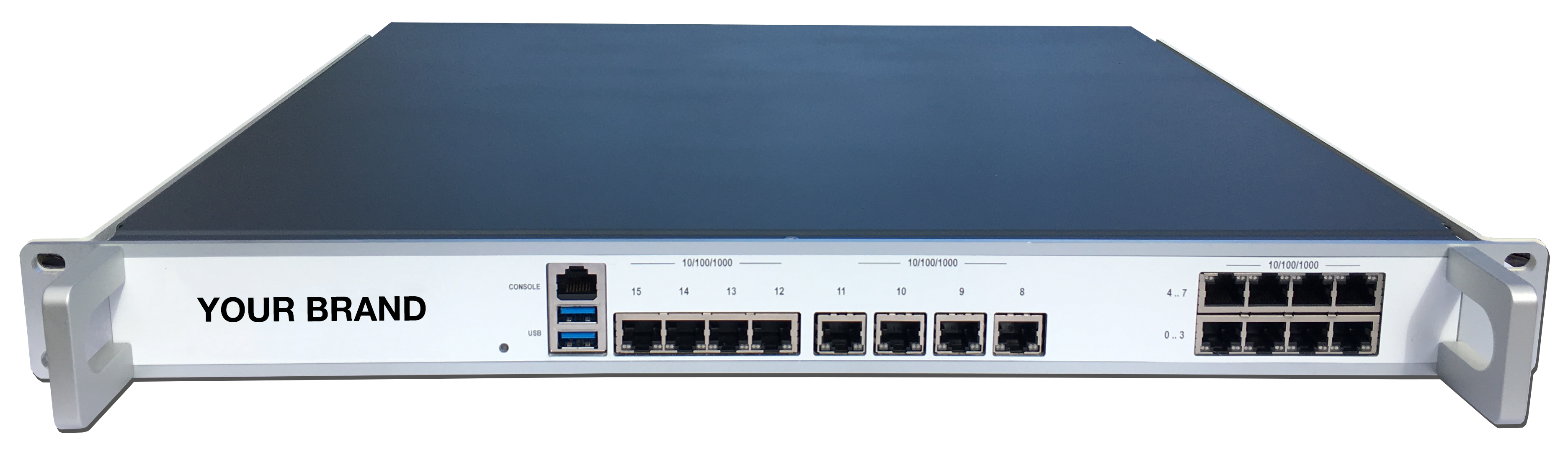

White-label Customized NSD



nsd--your-brand



RedPort is committed to offering the customization of an NSD required by a Distribution Partner or Service Partner business case, to enable a white-label hardware platform to support services, apps, or a hosted third-party solution.






Hosted Applications



digital-ship

 Businesses who are application providers understand that owning the infrastructure on which the applications are hosted can be time consuming, complex and expensive. RedPort provides enterprise-grade customers and suppliers alike customized platforms to host their applications meeting business and end-user needs.






Specifications



RedPort Optimizer NSD Technical Specifications
Enclosure 19” 1U Rack
Dimensions
[W x H x D]
485mm x 44mm x 405mm
CPU Model 7nd Generation Intel® i7-7700T 4 Core / 8 Treads 2.9Ghz
CPU # Cores 4 Core / 8 Treads
CPU Frequency 2.9Ghz / 3.8Ghz max turbo
CPU TDP 35W
CPU Cooler Active cooler for CPU up to 95W
Memory 24GB (288Pin DDR4 2133 UDIMM)
Storage M.2 SATA III 512Gb Solid State Drive with advanced global wear-leveling
and block management for reliability
Ethernet Ports 8x GbE [Intel® I210-AT] with two segments LAN 1/2 & 3/4 configurable
bypass + 4x GbE [Intel® i350-AM4]
Power Supply Type Integrated Bicker BEH-530H with standard 3-pin C14 socket
Power Supply Input AC 90~264V AC @ 47Hz~63Hz
Power Supply Specifics 300W high efficiency (up to 91%) Designed for continuous 24/7 operation
Console Cable USB to Serial RJ45 Console Cable
Regulatory Compliance FCC part 15 Class A, CE, Rohs
Options
Telephone Port 4x FXS telephone port
Memory 32 GB Ram
Storage 1T SSD
Ethernet Ports 4x additional ethernet ports or a total of 16






Downloads



Download Product Brochure



Download Technical Specification Sheet
